Turboflex XT40-Series Contractors Suction Hose

Turboflex XT40-Series Contractors Suction Hose is exceptionally flexible and durable, making it ideal for pump hire, dewatering, construction, and general water transfer applications. Soft cuffed ends allow for easy installation of hose tails and couplings, while extensive stock is available as raw hose or fitted with male and female Bauer couplings.

The XT40-Series is a fully integrated suction and delivery water hose, featuring a spring steel wire helix for full vacuum capability and textile reinforced walls for strength under demanding operating conditions. The unique Turboflex construction delivers outstanding flexibility and durability, making it one of the most flexible contractors suction hoses on the market.

Request a Quote Download Brochure

Hose size

DN25 – DN300
Length

Up to 20mt
Pressure rating

-100kPa - +1000kPa
End connections

Cuffed
Fitted with M/F Bauer couplings
Custom
Flange patterns

AS2129, ASME B16.5, ASME B16.47, AWWA C207, AS4087, BS EN 1092, BS 3293, JIS B2220, SANS 1123, DIN ISO 7005, custom
Safety factor

4:1
Temperature rating

-30 to +80 (ABRASATECH)
Optional extras

Anti-static wire
Wear monitor
ID tagging

Inner Liner

ABRASATECH (for high wear slurry)
FLOWTECH (for high temp or high acidic slurry)
FOODTECH (AS4020 approved for potable water)
Reinforcement

Spiralled synthetic fabric
Wire helix
Outer cover

ABRASATECH (for abrasion and UV resistance)
NEOTECH FRAS (for FRAS or oily environments)
FLOWTECH (for extreme UV or seawater)
Connection material

Hot dipped gal (as standard)
Stainless steel (SS316, SS304)
Carbon steel
Painted
Custom
Stocked Items

We carry an extensive range of stocked hoses fitted or unfitted with M/F Bauer sets. Please check with us for stock availability.
Stocked sizes

DN100 (3mt, 6mt)
DN150 (3mt, 6mt)
DN200 (3mt, 6mt)

Built for Demanding Site Conditions

Our contractor suction hoses are designed to deliver exceptional flexibility, making them easier to handle, deploy, coil and transport while helping reduce freight and storage costs. Every hose features a UV, ozone and abrasion-resistant outer cover to withstand harsh Australian conditions, preventing premature cracking and extending service life in demanding construction, mining and pump hire applications.

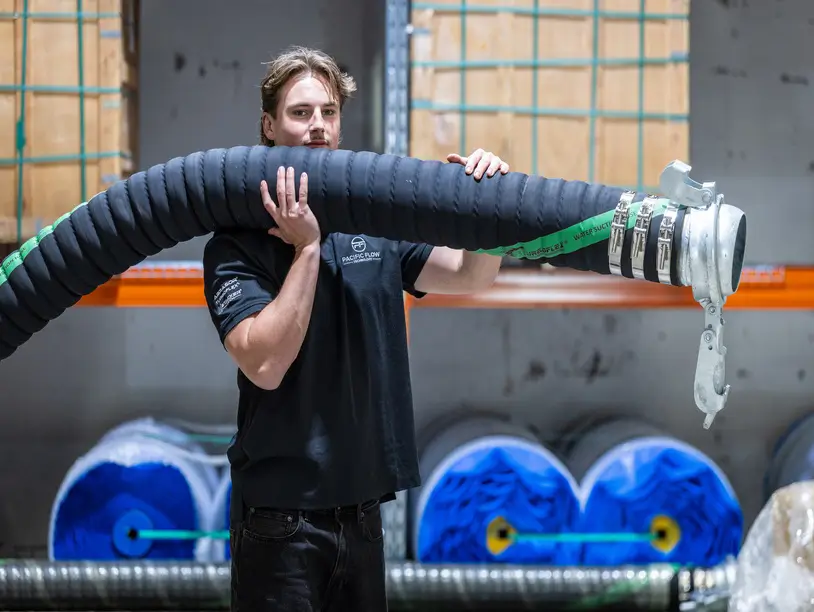

Available When You Need it

We maintain extensive stock of contractor suction hose in a wide range of diameters and lengths to minimise downtime and keep your projects moving. Available as raw hose or complete assemblies fitted with male and female Bauer couplings, we can provide fast turnaround on standard products as well as custom designs to suit your application.
