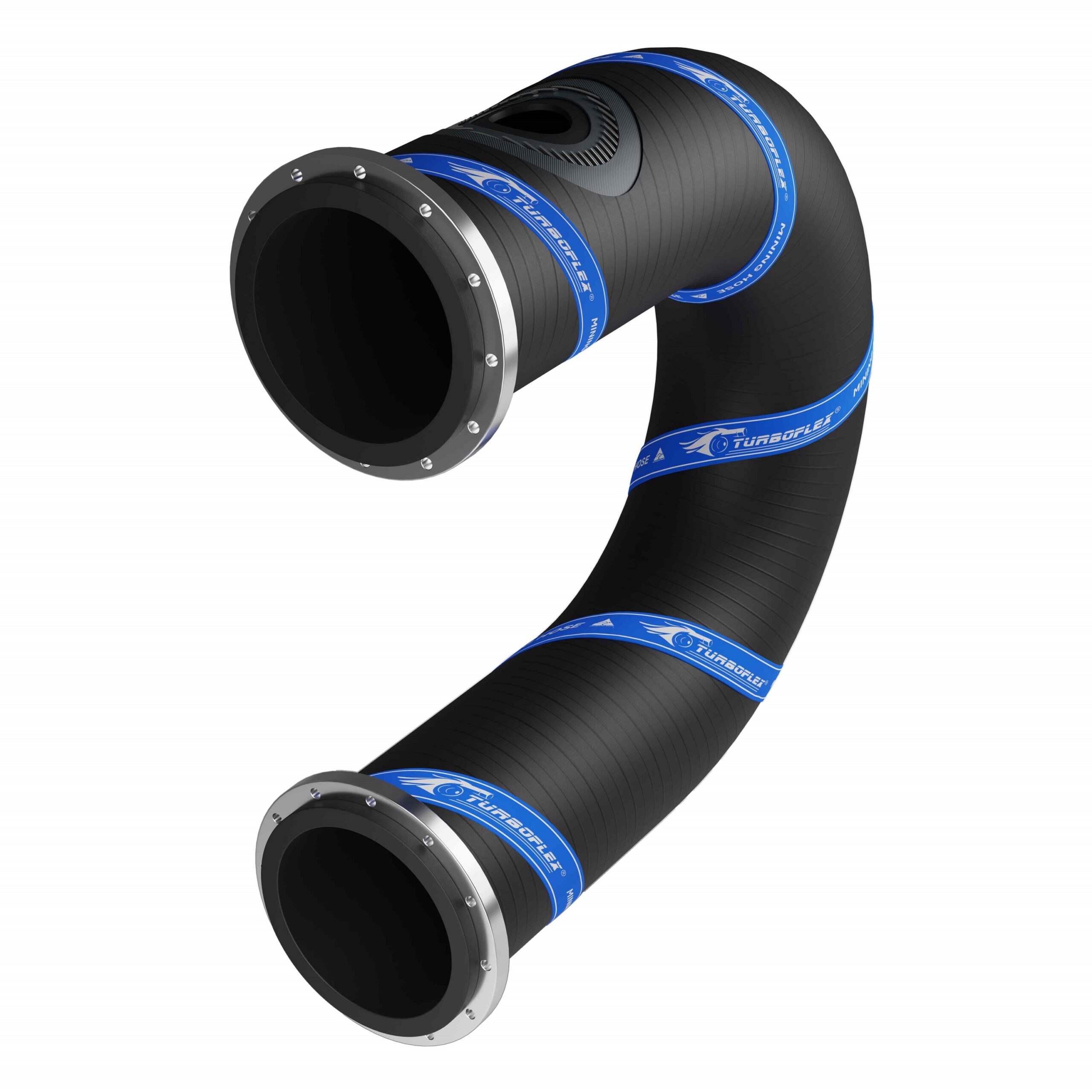

Turboflex XT10-Series Mining Hose

Turboflex XT10-Series Mining Hose is the most flexible mining hose in the world, capable of tight bends as small as 2D without kinking. Our unique hose construction developed in Australia allows for complex high wear piping applications in many cases reducing the need for custom bends, simplifying installation, and lowering overall pipeline costs. The ultra-flexible construction also allows us to manufacture and transport longer, larger diameter hard wall hoses, helping reduce joins, maintenance, and downtime across slurry pipeline systems.

The Turboflex XT10-Series is a fully integrated suction and delivery mining hose, featuring a spring steel wire helix, high-tensile textile reinforced wall, and a UV and abrasion resistant outer cover. As standard our Turboflex hoses come with our exclusive Abrasatech wear liner, delivering industry leading abrasion resistance. We also carry an extensive range of alternative compounds suitable for slurries containing chemicals, hydrocarbons, or high temperatures.

With one of the largest mining hose manufacturing capacities in Australia, backed by our ISO 9001-certified quality management system, we have the capability, experience, and production capacity to deliver projects of any size or complexity.

Request a Quote Download Brochure

Hose size

DN25 – DN800
Length

Up to 20mt
Pressure rating

-100kPa - +8000kPa
End connections

Plain
Swivel flange (beaded)
Fixed flange
Flanged spigot (swivel or fixed)
Victaulic spigot (shouldered, roll grooved, cut grooved)
Threaded
Raised
Cuffed
Custom
Flange patterns

AS2129, ASME B16.5, ASME B16.47, AWWA C207, AS4087, BS EN 1092, BS 3293, JIS B2220, SANS 1123, DIN, ISO 7005, Custom
Safety factor

4:1
Temperature rating

-30 to +80 (ABRASATECH)
Optional extras

Anti-static wire
Wear monitor
ID tagging

Inner Liner

ABRASATECH (for high wear slurry)
QUARRYTECH (for fine sands slurry)
ROCKTECH (for large rock slurry)
FLOWTECH (for high temp or high acidic slurry)
NITRILE (for slurry containing hydrocarbons)
BUTATECH (for high acidic media)
HYPATECH (for high acidic or high temp media)
Reinforcement

Spiralled synthetic fabric
Wire helix
Outer cover

ABRASATECH (for abrasion and UV resistance)
NEOTECH FRAS (for FRAS or oily environments)
FLOWTECH (for extreme UV or seawater)
Connection material

Hot dipped gal (as standard)
Stainless steel (SS316, SS304)
Carbon steel
Painted
Custom
